Model：JXFSTPRP-CLN
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：Shanghai Jingxin JXFSTPRP-CLN Cryogenic Grinder is a fast and efficient, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source .
Product description: Main overview：

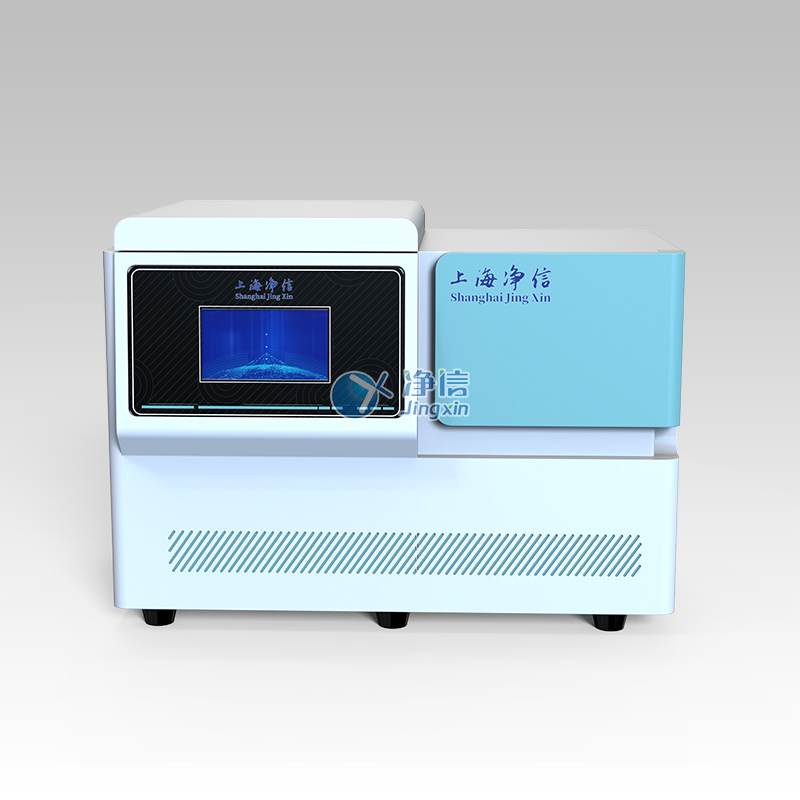

Shanghai Jingxin JXFSTPRP-CLN Cryogenic Grinder is a fast, efficient and refrigerated grinding system. It can grind, pulverize, and break the cell walls of soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, and paleontological specimens in a very short time. Widely used in life science, medicine, biochemistry, environment, geology, agriculture, forestry, quality inspection, materials and other fields.
JXFSTPRP-CLN Product principle：
Put the sample and grinding ball into the grinding machine (with grinding jar or centrifuge tube/adapter), under the action of high frequency swing, the grinding ball collides and rubs back and forth in the grinding machine at high speed, and the sample can be completed in a very short time Grinding, crushing, mixing and cell wall breaking.
Main functions and technical indicators：
1. Extract nucleic acid/protein
Cryogenically ground samples can effectively inhibit nucleic acid degradation and retain protein activity.
2. Analysis of medicinal components
There are often significant differences between isomers of active pharmaceutical ingredients, and cryogenic milling prevents the molecules from degrading due to stress and heat.
3. Reduce sample volatilization
Cryogenic grinding can significantly reduce the volatilization of the sample and preserve the content of the sample components more completely.
4. Grinding tough/hard samples
For difficult-to-grind samples such as high-tough plastics, high-strength plastics, and resins, cryogenic grinding can greatly improve the grinding effect and efficiency.
Features：
1. Does not destroy the sample components: the grinding temperature can be customized and adjusted, which can effectively inhibit nucleic acid degradation and retain protein activity;
2. Refrigeration adjustable: -50 to 37 degrees
3. High throughput throughput: process up to 192 samples at a time
4. Easy to operate: built-in program controller, can set parameters;
5. High safety: with safety cover and safety lock, no need to involve liquid nitrogen operation, high safety;
6. No cross-contamination: it is in a fully enclosed state during the grinding process to avoid cross-contamination;
7. Low noise: During the operation of the instrument, the noise is less than 55dB, which will not interfere with other experiments or instruments.
8. No wearing parts design, electromagnetic locking protection
9. Stainless steel inner cavity, easy to clean and disinfect
10. No need for regular maintenance
11. Stable repeatability: the same grinding procedure achieves the same effect
12. Program can be stored: 10 groups of custom grinding programs can be stored
13. Good grinding effect: discharge particle size 5um
The effect diagram of the grinding experiment case of the Cryogenic Grinder：
Product parameters：
Main parameters | Parameter range |
Application | Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, shaking |
Sample processing: | The maximum throughput in 1.15 seconds can process 64 samples at the same time, suitable for 12-bit and 24-bit liquid nitrogen freezing adapters |
Compatible sample size: | 64*(0.2-0.5ML)/64*2ML/12*(5-15)ML/--4*25ML/2*50ML can be customized grinding tube of various specifications |
Touch screen display: | Humanized interaction design, easy to operate |
Store experimental data: | Ten groups of experimental data can be stored. According to different experimental samples, animal heart, spleen, lung, kidney, bone, skin, and hair patterns are set. |
Pattern cycle: | According to the set experimental parameters, it can continuously cycle between several set parameters to further reduce the interference of human factors |
Maximum feed size: | No requirement, adjust according to adapter |
Cooling function: | Yes, -50 degrees to room temperature |
Temperature control accuracy | ±0.5℃ |
Open cover operation protection: | Electromagnetic locking (switch optional manual or automatic) |
Final discharge size: | ~5μm |
Number of grinding platforms: | Acceptable grinding jars: >2 |
Fastening device: | Fastening device with automatic centering |
Homogenization speed and speed: | 0一70HZ/s |
Working hours: | 0 seconds-9999 seconds, users can set by themselves |
Grinding Ball Diameter: | 0.1-30mm |
Grinding Ball Material: | Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand |
Accelerate: | Reach max speed in 2 seconds |
Decelerate: | Reach minimum speed in 2 seconds |
Noise level | <55db |
Grinding method: | Wet grinding, dry grinding, cryogenic grinding |
Cooling function | It has the function of upgrading to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration |
Adapter Material: | PTFE or alloy steel |
Full protection: | Safety lock when working |
Grinding Kit Material: | Hardened steel, Teflon, Zirconia |
Dimension | 685*400*510MM |
Weight | 85KG |

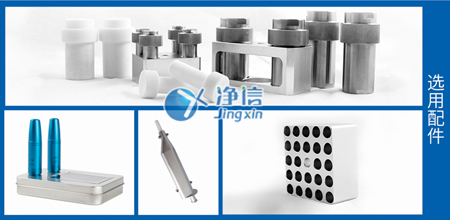

Optional accessories：
